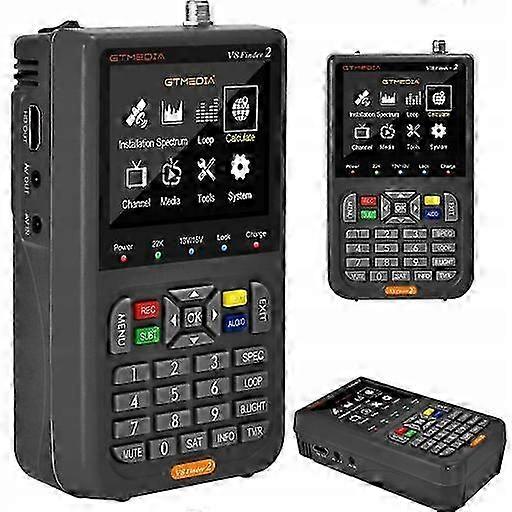

Overview: The V8 Finder2 DVB-S2X signal receiver is a handheld signal locator compatible with DVB-S/S2/S2X and MPEG-2/4 H.264 (8-bit). Packing list: 1 * viewfinder V8 2 1 * USB cable 1 * User Manual (EN/DE/FR/ES/IT/PO) 3,5-inch high-resolution LCD screen: V8 Finder2 SAT Finder also supports real-time power display. You don't have to worry about a sudden power failure during use. Built-in speakers: The A V8 Finder2 also has a built-in speaker that can remind you to charge while the battery is weak. Starfinder and H.264 decoder and HD player: It also supports HDMI and AV outputs. Portable: Specifications: Name: V8 Finder2 DVB-S2X signal receiver Material: ABS Color: Black Input frequency: from 950 to 2150 MHz Input signal level: -65 to -25 dBm Band switching control: 22 kHz LNB power supply: 13V/18V, 350mA max Demodulation type: DVB-S2 QPSK, DVB-S2 QPSK/8PSK/16APSK/32APSK, DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK Symbol speed: 2 Type LCD: Transmission TFT Points: 320 RGB*240 Active area (width. x H ): 70,08 (H) ) x 52.56 (width ) mm Connection type: socket 3,5 mm Video output: CVBS Audio output: stereophonic L/R audio output Output interface HD: HD 1.3a AV input interface: 3,5 mm socket Video input: CVBS Audio input: stereophonic L/R audio input Video decompression: MPEG-2 MP@HL, MPEG-1 decoding, MPEG-4 ASP@l5 HD resolution, H.264 MP&HP@L4, HW JPEG decoding Resolution: PAL-25 frame, 720x576, NTSC -30 frame, 720x480 Signal compatibility: Support conversion of multiple video formats Video formats: 4:3, 16:9, with pan & scan and letterbox conversion Audio decompression: MPEG-1 Layer I/II, MPEG-2 Layer I/II Audio output mode: stereo, mono, R/L Data service port connection: USB Data protocol: USB 2.0 interface File management system: NTFS, FAT32, FAT16 File Format : Media: TS, mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp Sound: wma, mp3 Photo: jpg, jpeg, bmp, img PVR option: supports TS file recording WiFi option: Supports network connections via USB WiFi Lithium-ion battery capacity: 7,4 V/4000 mAh Energy consumption: nominal 8 W (without external equipment) Temperature: work 0 45, storage -10 60 Moisture: 2090% non-condensing Features: 3,5-inch high-resolution LCD screen Fully compatible with DVB-S2X/S2/S, MPEG-2/MPEG-4 Support H.264 (8-bit) hard decoding. Digital signal strength and quality meter Support for cycle search Spectrum analyzer Supports automatic, blind, manual or NIT scanning sound of blockage Automatically calculate the angle of AZ, EL Supports DISEQC 1.0/1.1/1.2, Unicable, 0/22kHz audio integrated speaker Supports AV output and AV input Supports two high-resolution outputs Support real-time battery display, low battery reminder Youtube support for USB WiFi 2.4G Short circuit protection LNB Includes 7,4V/4000mAh Lithium-Ion Battery Supports Type-C charging interface, supports fast multi-protocol charging Type-C reverse charging support Software update via USB port Easy to wear Note: Due to the light and screen setting difference, the item's color may be slightly different from the pictures. Please allow slight dimension difference due to different manual measurement.
