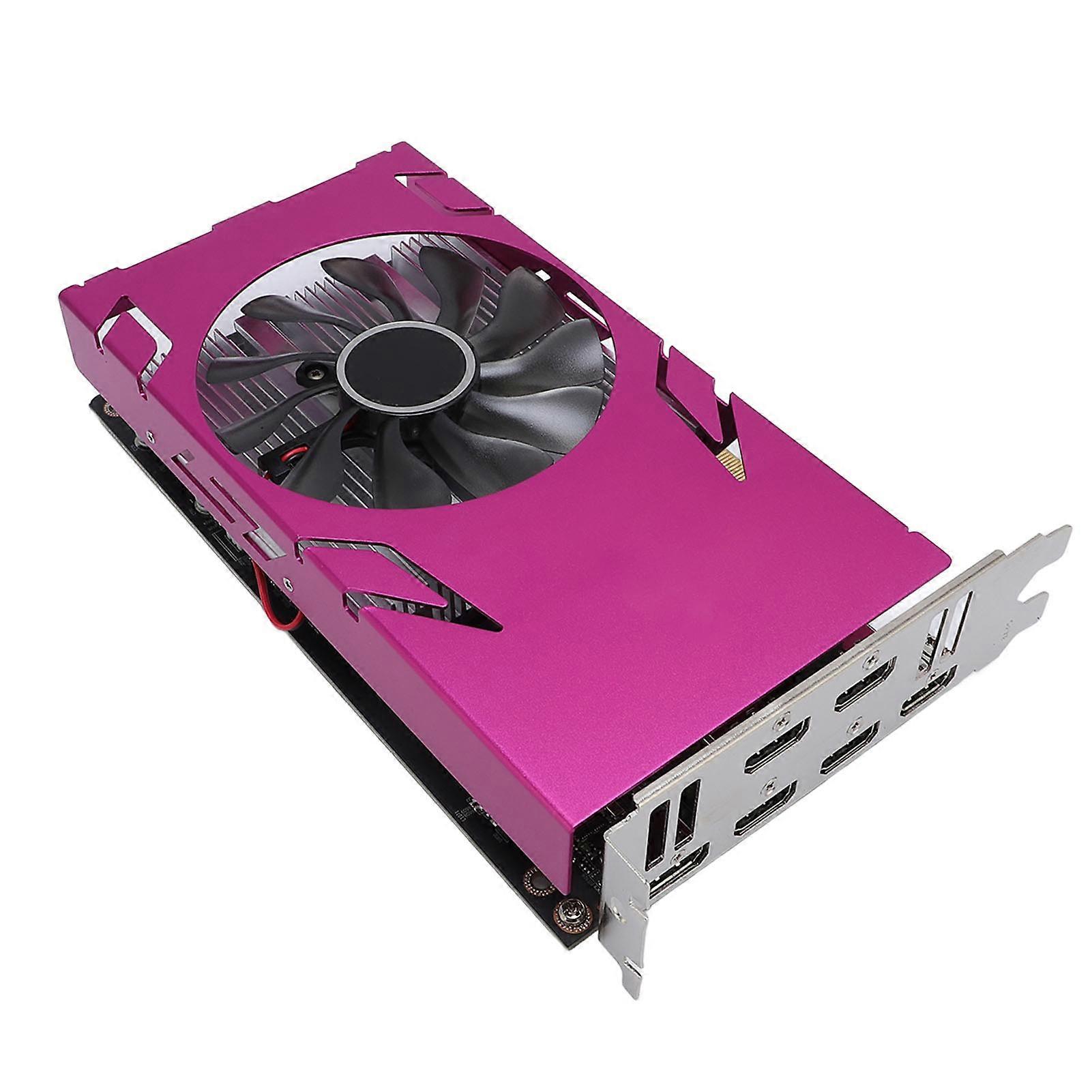

Graphics Card R7 350 2G 6HD Multimedia Interface GB 800 4500MHz 2GB 128bit GDDR5 Computer Video Card GPU with 6 Port for Wins 7 10 Item Type: Computer Graphics Card Model: R7 350-2G 6HD Multimedia Interface GB Material: PCB+Metal Aluminum Core Code and Process: R7 350/28nm Shader Units: 512 Core Clock Memory Clock: 800 4500MHz Memory Capacity and Specification: 2GB 128bit GDDR5 3D Features: DirectX 12 11 1 OpenGL 4.6 OS Features: for Wins 7(64), for Wins 10(64) Cooler: YDP19-A Bus Interface: PCI-Express 3.0 x 16 Output Interface: HD Multimedia Interface x6 External Power Supply: None Low Profile Bracket: None Product Installation: 1. Turn off the power and disconnect all cables, open the computer case. 2. If there is any other graphics card installed on the motherboard, remove it first, then insert the new graphics card into the PCI Express X16 slot on the motherboard. 3. If the graphics card comes with an additional power input interface, find the corresponding plug on the main power supply, plug it into the graphics card, use these adapter plugs, and connect the graphics card to provide sufficient power. 4. Tighten the fixing screws on the graphics card bracket to ensure the graphics card is securely fixed. 5. Close the casing, reconnect all peripheral device cables, and then plug the display cable into the corresponding interface on the graphics card. 6. If you need e the TV-OUT, HD multimedia interface, DisplayPort, or other interfaces of a TV or display device, first confirm whether the graphics card has the corresponding interface. If so, directly use the appropriate cable to connect the display device and the graphics card. For detailed debugging and other functions of these devices, please touch for Yeston directly, and we will do our best to meet your needs. Driver Installation: 1. The graphics card driver installation requires the first startup after the graphics card hardware is installed. 2. Graphics cards are divided into two series based on the chipset. Please select the appropriate driver installation according to the actual product information. You can complete the driver installation by following the steps below: Step 1: After the system boots up, go to the official website, and click to enter the product center. Step 2: Check the model number of your graphics card on the box, or the product nameplate on the back of the card. Step 3: According to the specific model number of your graphics card, go to the corresponding product page, click “Driver Download”, and download the corresponding driver according to the version of the operating system that you have installed. Download the corresponding driver according to the version of the operating system you have installed. Step 4: After the driver download is complete, double click the file to start the installation, please follow the instructions of the installation wizard to install. After the installation is complete, restart your computer.
