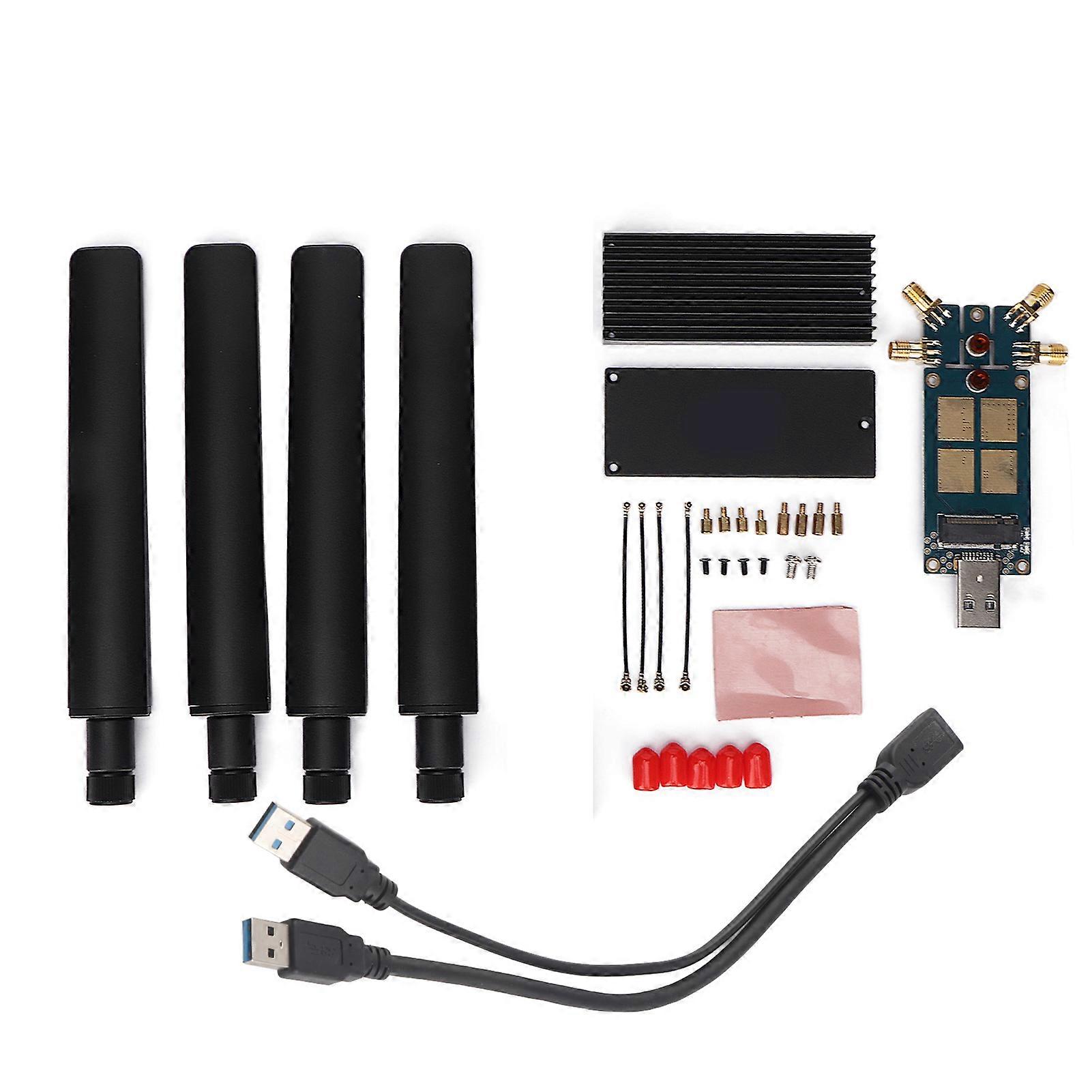

Features: 1.Support Interface: Expansion board supports M.2(NGFF) Key B interface for 5G modules, USB 3.1 Type A interface for NANO SIM cards 2.Support Devices: Support direct plug in or via USB adapter for Windows computers, for Raspberry Pi 4B 3B+, for CM4 IO BASE A B motherboard and for Jetson Nano series main control board to access the Internet. 3.Pre Positioning Holes: PCB is designed with a sunken gold process, with multiple slots and positioning holes reserved for easy embedding and integration, and aluminum alloy heat sink for good heat dissipation. 4.Support OS: Adapter supports for Windows, for Linux and other systems, just plug in the USB interface, install the driver for simple configuration, you can achieve high speed 5G networking. 5.Network Indicator: On board power and network indicator, with multiple pads reserved for viewing module working status and testing other functions specification:Item Type: NGFF M.2 to USB 5G Adapter Material: PCB Model: USB TO M.2 B KEY Adaptation: Can be Adapted for SIMCom 5G Module (All Not Included in the Package). SIM8202G M2: for Snapdragon X55 in China, USA, Japan, Korea, Europe, Middle East and America SIM8262E M2: for All Regions Except Americas, for Snapdragon X62 RM500Q GL: for Snapdragon X55 Worldwide (Excluding the US) RM500Q AE: for Worldwide (Excluding China), for Snapdragon X55 RM502Q AE: for Worldwide (Excluding China), for Snapdragon X55 Operating Frequency Band: SIM8202G M2: 5G sub 6 n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n66, n71, n77, n78, n79; LTE FDD B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71; LTE TDD B34, B38, B39, B40, B41, B42, B43, B48; WCDMA B1, B2, B3, B4, B5, B8, GNSS GPS, for GLONASS, for BeiDou(Compass), for Galileo SIM8262E M2: 5G sub 6 n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78,n79; LTE FDD B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32; LTE TDD B38, B39, B40, B41, B42, B43; WCDMA B1, B5, B8; GNSS GPS, for GLONASS, for BeiDou(Compass), for Galileo RM500Q GL: 5G sub 6 5G NR NSA n41, n77, n78, n79 ,5G NR SA n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 ; LTE FDD B1, B2, B3, B4, B5, B7, B8, B12(B17), B13, B14, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71; LTE TDD B34, B38, B39, B40, B41, B42, B43, B48; LAA B46; WCDMA B1, B2, B3, B4, B5, B6, B8, B19; GNSS GPS, for GLONASS, for BeiDou(Compass), for Galileo RM500Q AE: 5G sub 6 5G NR NSA n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79, 5G NR SA n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79; LTE FDD B1, B2, B3, B4, B5, B7, B8, B12(B17), B13, B14, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71; LTE-TDD B34, B38, B39, B40, B41, B42, B43, B48; LAA B46; WCDMA B1, B2, B3, B4, B5, B6, B8, B19; GNSS GPS, for GLONASS, for BeiDou(Compass), for Galileo RM502Q AE: 5G sub 6 5G NR NSA n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79, 5G NR SA n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79; LTE FDD B1, B2, B3, B4, B5, B7, B8, B12(B17), B13, B14, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71; LTE TDD B34, B38, B39, B40, B41, B42, B43, B48; LAA B46;WCDMA B1, B2, B3, B4, B5, B6, B8, B19; GNSS GPS, for GLONASS, for BeiDou(Compass), for Galileo Data Transmission: SIM8202G M2: 5G sub 6 2.4 Gbps (DL), 500 Mbps (UL) ; LTE 1.0 Gbps (DL), 200 Mbps (UL); UMTS 42 Mbps (DL), 5.76 Mbps (UL) SIM8262E M2: 5G sub 6 2.4 Gbps (DL), 500 Mbps (UL) ; LTE 1.0 Gbps (DL), 200 Mbps (UL) ; UMTS 42 Mbps (DL), 5.76 Mbps (UL) RM500Q GL: 5G sub 6 5G NR NSA 2.1 Gbps (DL), 900 Mbps (UL) 5G NR SA 2.5 Gbps (DL), 600Mbps 650 Mbps (UL) ; LTE 1.0 Gbps (DL), 200 Mbps (UL) ; UMTS 42 Mbps (DL) , 5.76 Mbps (UL) RM500Q AE: 5G sub 6 5G NR NSA 2.1 Gbps (DL), 450 Mbps (UL)5G NR SA 2.5 Gbps (DL), 650 Mbps (UL); LTE 1.0 Gbps (DL), 200 Mbps (UL); UMTS 42 Mbps (DL), 5.76 Mbps (UL); RM502Q AE: 5G sub 6 5G NR NSA 4.2 Gbps (DL), 450 Mbps (UL)5G NR SA 5.0 Gbps (DL), 650 Mbps (UL); LTE 2.0 Gbps (DL), 200 Mbps (UL); UMTS 42 Mbps (DL), 5.76 Mbps (UL) Operating System: For Windows, for Linux, for Android Communication Protocol: TCP, UDP, FTP, HTTP, HTTPS, SMS, etc. Dial Up Internet Access: RNDIS, NDIS, PPP, MBIM Firmware Upgrade: Firmware Upgrade Through USB Interface is Supported. Type of SIM Card: NANO SIM card Antenna: 4xIPEX 4 Interface, Used for 3G, 4G, 5G, GNSS Note: 5G Module Must Be Purchased Separately. This Table is the Model Supported by Actual Measurement; if It is Used in Other Modules, Pin Compatibility Must Be Confirmed, and the Actual Measurement Shall Prevail. PackageList: 1 x Expansion Board 1 x Adapter Cable 2 x Heat Sink 5 x Rubber Hat 1 x Heat Sink Sticker
