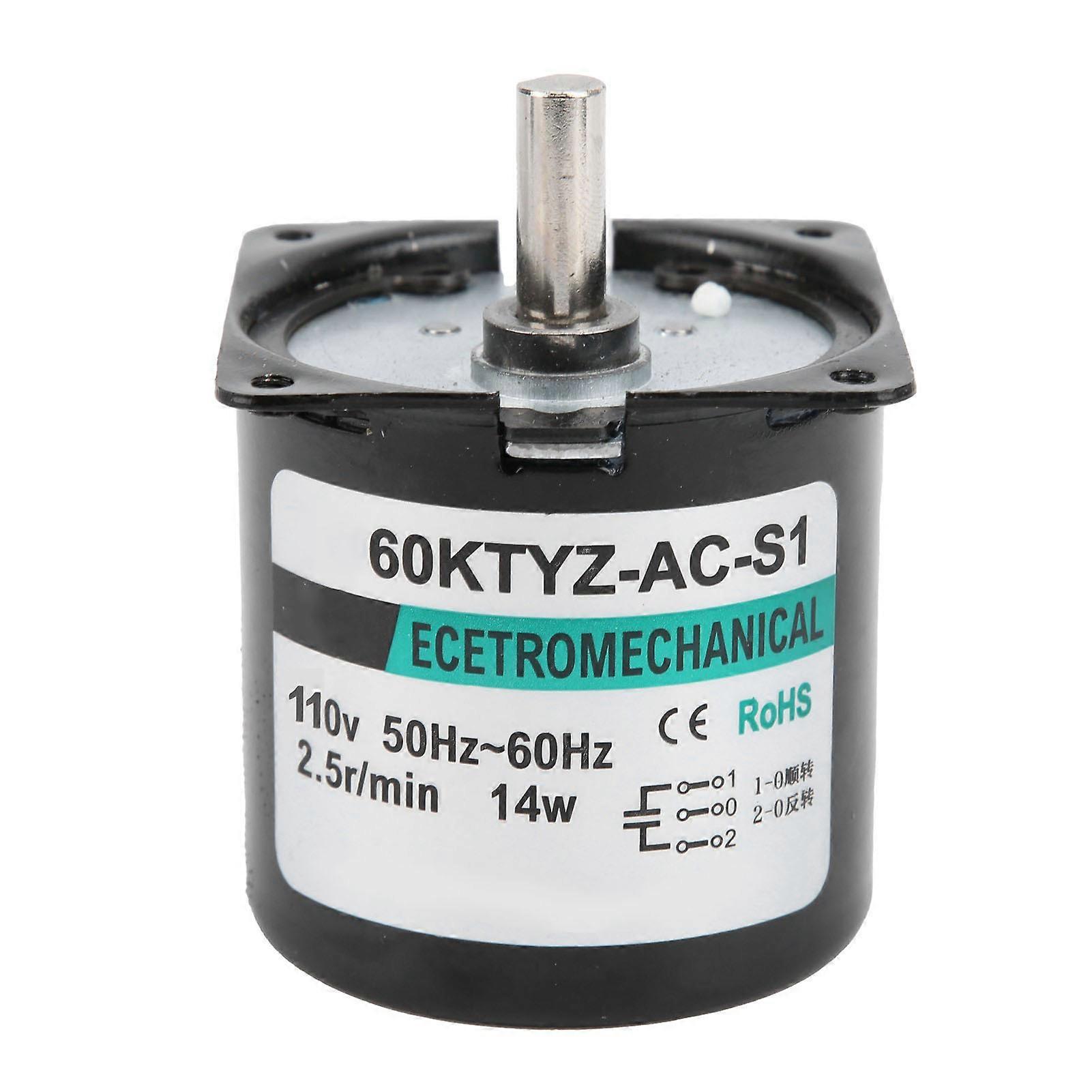

1、All metal gears are used, which are resistant to friction, run smoothly and quietly, and have long service life. 2、The synchronous motor is small and compact, easy to install and disassemble, suitable for all kinds of micro machine. 3、The coil stator and rotor adopt copper coils and deceleration resistors, which have strong electrical conductivity and increase the motor torsion. 4、High temperature grease lubricating oil has the characteristics of low friction, noise reduction, and slow temperature rise. 5、Commonly used in household appliances such as circulating fans and air cleaners, but also in industrial equipment such as machine tools. Item Type: Mini Motor Model: XD-60KTYZ Material: Copper Output Shaft Size: Approx. 7 x 19mm / 0.3 x 0.7in Protection Level: IP20 Insulation Resistance: After the rated operation of the motor under normal temperature and humidity, when measuring the insulation resistance between the coil and the motor shell with a DC500V resistance meter, it does not exceed 20MΩ Insulation Withstand Voltage: After the rated operation of the motor under normal temperature and humidity, apply 50Hz or 60Hz between the coil shells for one second at a voltage of 1800V without abnormality. Temperature Rise: When the gearbox or equivalent heat sink is installed, and the rated operation is performed under normal temperature and humidity, it is normal to measure the temperature rise of the coil by the resistance method to 75-80℃. Insulation Class: E class (130℃) Operating Environment Temperature: Motor: -10~+40℃ (no icing) Use Environment Humidity: 85% or less (no condensation) Whether Support CW and CCW: Yes Whether Support Speed Regulation: No Model Voltage (V) Speed (rpm/min) Normal Torsion (kgf·cm) Long Time Work Large Torsion (kgf·cm) Intermittent Work Power (W) XD60KTYZ AC220V 2.5 38 50 14 5 28 34 14 10 20 26 14 15 15 20 14 AC110V 2.5 38 50 14 5 28 34 14 10 20 26 14 15 15 20 14 1 x Mini Motor
