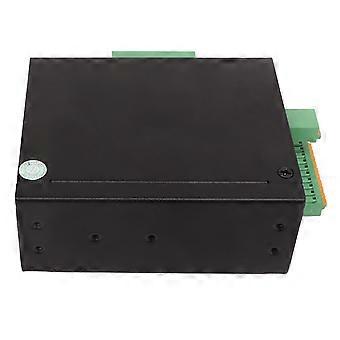

Feature:1. Communication Protocol: The communication protocol adopts standard for Modbus TCP protocol, for Modbus RTU over TCP protocol and MQTT protocol.2. Reliable Performance: Support 8 channel digital input (DIN), 8 channel digital output (DO), 8 channel analog input (AIN). 1 port RS485 communication interface, supporting the standard for Modbus RTU protocol for expansion.3. Effective Protection: Wide working voltage DC936V, and anti reverse connecting protective function. Equipped with LED indication of working state, with reset button and convenient to field installation and debugging.4. Strong Construction: Adopt metal shell, protection level IP30, and the metal housing and system are safely separated, especially suitable for industrial control field applications.5. Easy to Operate. It can be managed and configured through LAN configuration software, easy to operate and maintain.Specification:Item Type: Multi Channel Switch Analog to Ethernet IO ModuleMaterial: MetalPort: 1 Port Ethernet Switch, 1 RS485, 1 DIN, 8 DO,8 AINPower Output: 1 x DC Analog: 4-20mA/0-5V/0-10V.Power supply:Power consumption: Typical standby power consumption: 2WPower Protection: Anti reverse connection; ESD Air: 15KV; Surge: 4KVEthernetNetwork port specification 1 x RJ45, 10M/100MbpsNetwork port protection: ESD contact: 8KV ; Surge: 4KV (10/1000us)Protocol: for Modbus RTU, for Modbus TCP, MQTTSerial port:Number of serial ports: 1 x RS485Serial baud rate: 2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 128000Data bits 7, 8Checksum bits: None, Even, OddStop bits: 0.5, 1, 1.5, 2Protocol: for Modbus RTU (slave), for Modbus RTU (master)Serial port protection: ESD contact: 8KV; Surge: 4KV (8/20us)Digital input:Number: 8 channels (maximum)Input types: dry contact and wet contact supported, default wet contact, dry contact to be specified when ordering.Wet contact supports both NPN type sensors and PNP type sensorsDry contact: closed: short connection; open: open endWet contact: closed: 10~30VDC; open: 0~3VDCTypical Application:Intelligent agricultural temperature and humidity data acquisition and monitoringIntelligent breeding temperature and humidity data acquisition and monitoringTemperature and humidity data collection and monitoring in storage and libraryObservatory information data acquisition and monitoringTemperature monitoring of cold storage, fruit and vegetable storage room, industrial computer room, transformer cabinet, etcOther situations where the monitoring points are scatteredSolar monitoring system data transmission, charging pile data acquisition and transmissionData transmission of ATM, POS, ammeter, PLC, DAQ and other equipmentSmart grid data acquisition and controlIntelligent traffic data acquisition and controlIndustrial automation data acquisition and controlEnvironmental protection data acquisition controlPackage List:1 x IO Data Acquisition Module 1 x Guide Buckle 3 x Screw 1 x Instruction Card
