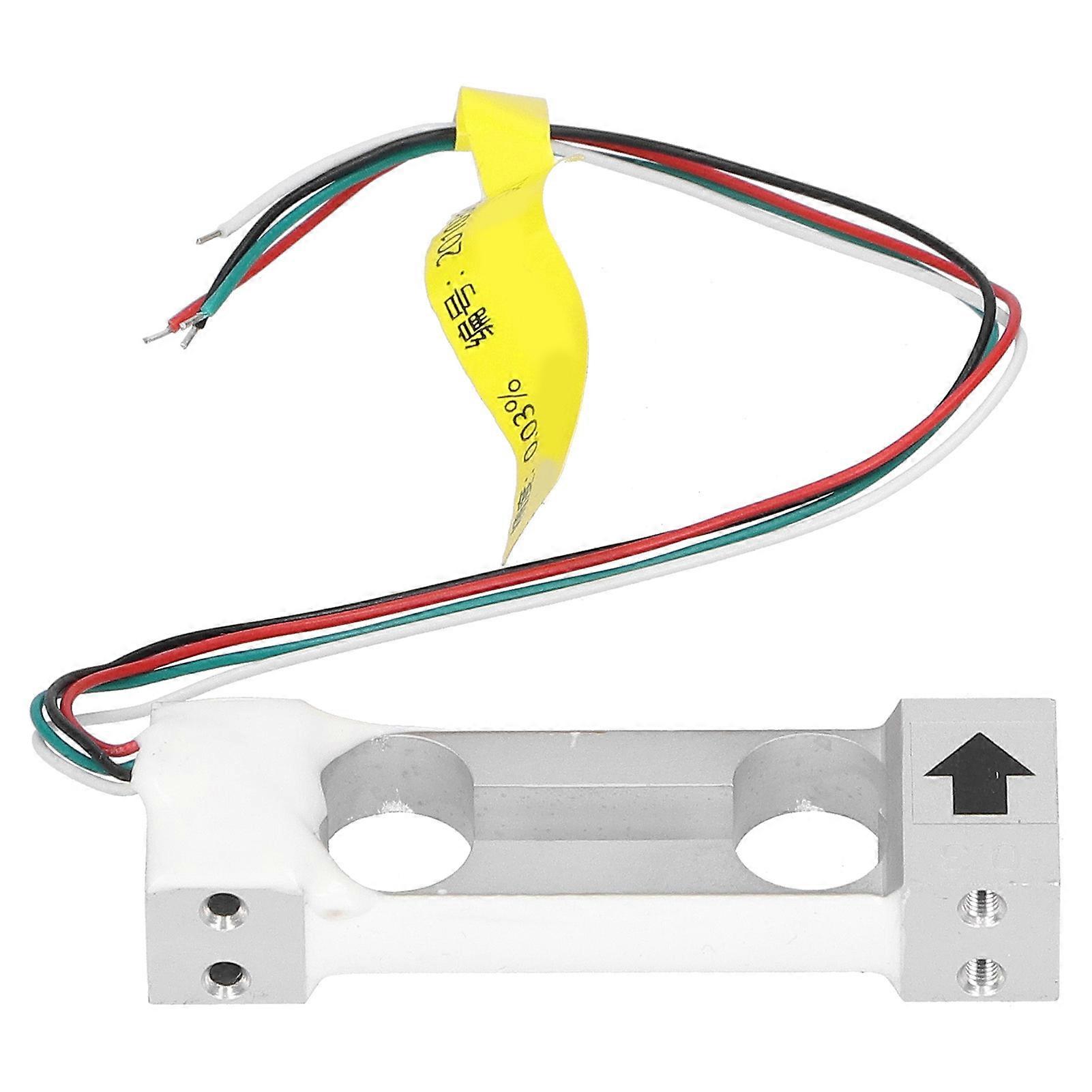

Item Type: Load Cell Sensor <br>Material: Aluminum alloy <br>Model: DYX-306 <br>Power Supply Voltage: DC5-12V <br>Sensitivity: 2.0±0.05mv/v <br>Non-Linearity: ≤0.02%F·S <br>Lag: ≤0.03%F·S <br>Repeatability: ≤0.02%F·S <br>Creep: ≤0.03%F·S/30min <br>Zero Output: ≤1%F·S <br>Zero Temperature Coefficient: ±0.03%F·S/10℃ <br>Sensitivity Temperature Coefficient: ±0.03%F·S/10℃ <br>Working Temperature Range: -20℃~+80℃ <br>Input Resistance: 350±20Ω <br>Output Resistance: 350±1Ω <br>Safe Overload: 150%F·S <br>Insulation Resistance: ≥5000MΩ (50VDC)<br>1、Has good plasticity and can be processed into various profiles. The density of aluminum alloy is low, but the strength is relatively high, which is close to or exceeds that of good?quality steel <br>2、Possess excellent electrical conductivity, thermal conductivity and corrosion resistance, widely used in industry, and its usage is second only to steel <br>3、Ex?factory sensors/instruments have been subjected to aging test, which guarantee durability and quality <br>4、Come with high accuracy, strong stability, dust?proof sealing, and wide measuring range <br>5、Suitable for force measurement in industrial systems, mainly for industrial automation measurement and control system for measuring tension and pressure and other kinds of weighing and force measurement1 x&nbsp;Load Cell Sensor
