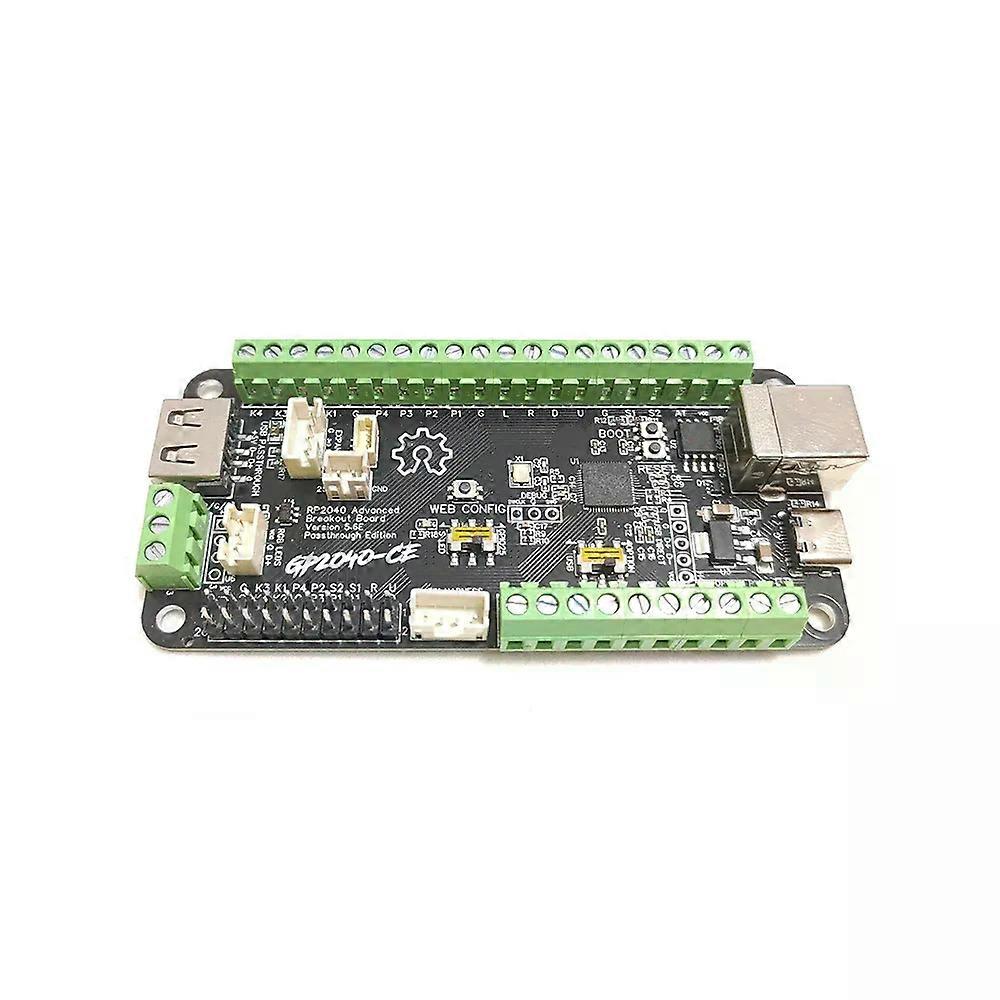

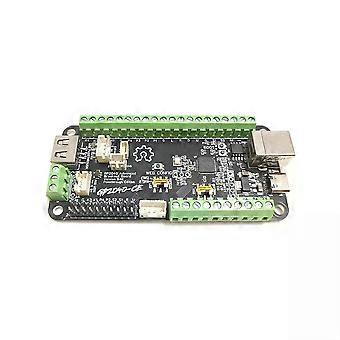

GP2040 RP2040 Advanced Breakout Board USB Passthrough Fighting Board for Arcade Hit box DIY Fighting Stick Work For PC PS4 RP2040 Advanced Breakout Board Version 5.6E USB Passthrough Edition Raspberry Pi Pico Integrated Pico Fighting Board for Arcade Hitbox Mixbox Slimbox DIY Fighing Stick Work For PC PS4 GP2040-CE board The Integrated Pico Fighting Board uses the same form factor and layout of the Brook PCBs to maintain compatibility with existing arcade stick cases, wiring harnesses, wire management accessories, etc. RP2040 Advanced Breakout Board - USB Passthrough Edition GP2040-CE (Community Edition) is a gamepad firmware for the Raspberry Pi Pico and other boards based on the RP2040 microcontrollers that combines multiplatform compatibility, low latency and a rich feature set to provide endless customization possibilities without sacrificing performance. GP2040-CE is compatible with PC, PS3 and PS4, Nintendo Switch, Steam Deck, MiSTer and Android. Features: -Select from 5 input modes: XInput, Nintendo Switch, PS4, PS3 and Keyboard Overclocked polling rate for less than 1 ms of input latency in all modes. Multiple SOCD cleaning modes - Up Priority (a.k.a. Stickless), Neutral, and Second Input Priority. Left and Right stick emulation via D-pad inputs as well as dedicated toggle switches. Dual direction via D-pad + LS/RS. Reversed input via a button. Turbo and Turbo LED with selectable speed Per-button RGB LED support. PWM Player indicator LED support (XInput only). Multiple LED profiles support. Support for 128x64 monochrome I2C displays - SSD1306, SH1106, and SH1107 compatible. Custom startup splash screen and easy image upload via web configuration. Support for passive buzzer speaker (3v or 5v). Built-in, embedded web configuration - No download required! Standard wiring via screw terminals or 20-pin header (Brook-compatible) 4-pin header for TP/LS/RS buttons (Brook-compatible) Quick Connect 20-Pin Harness Standard wiring via 20-pin header (Brook-compatible) 4-pin header for TP/LS/RS buttons (Brook-compatible) for PS5 Now The updated RP2040 Advanced Breakout Board is in! This is the v5.4E Passthrough Edition board that will let you connect an authentication device like a MagicBoots v1.1 for PS5 play on games that support PS4 fight sticks. Connection: To Connect OLED Display: Shortcuts BEFORE YOU BUY The RP2040 Advanced Breakout Board runs the GP2040-CE firmware. This firmware can do many things, but it is important to understand some things that it cannot do out of the box: For native PS4 support you will need appropriate DS4 keys (which neither we nor the GP2040-CE team can provide) or a compatible USB dongle like the MayFlash MagicBoots v1.1 There is no native PS5 support but you can use the dongle from the above point which will allow for play in any games that support legacy PS4 controllers (examples include Street Fighter 6, Mortal Kombat 11, etc) Neither the RP2040 Advanced Breakout Board or the GP2040-CE firmware is compatible with the Brook UP5 Playstation 5 Add-On. Due to the open-source nature of the RP2040 Advanced Breakout Board the GP2040-CE firmware is constantly changing and improving. It is highly recommend that you first reach out to the official community . Attribution: We care your order _x000D_
