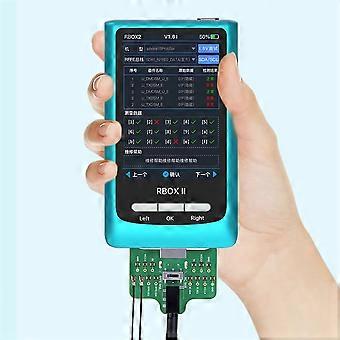

Intelligent Drawing RBOXII bus analyzer is a compact and convenient device for &Android chipset RFFE bus testing, identify fault points accurately. Compared with the first generation, RBOX II added uart electrical level adjustment function, improved the compatibility. It is also built in with buzzer, enables button feedback and short circuit alarm, more stable. For series, it can fix the problem that the phone has baseband but without serial number. For Android chipset, it focuses on the problems caused by chipset RFFE bus: Remind to Disable Airplane Mode, turn on the antenna, the wireless device is turned off, can't search for the operator and other signal failures. Support offline diagnostics for full series+link with Android models through Intelligent Drawing. The device integrates massive standard RFFE bus data, and the data of popular new models be pushed to the cloud every week. Break through traditional limitation on polarity, accurately capturing abnormal signals in motherboard disconnection/ inveracious soldering. Automatically matching the motherboard bitmap for Android models, accurately locking chip abnormalities. Detect series without connecting with Intelligent Drawing, breaking free from computer and achieve bus data analysis on a single device. Reserved 13mini battery (2406mAh), 12 hours super long endurance. Anti-drop/anti-static/anti-interference, high qualified plastic body, measure data stably. RBOXII Bus Analyzer for RFFE BUS Data Test Locate / RFFE BUS in seconds Blind RFFE BUS test on the positive and negative probe + wire jumping detection Support to connect with Intelligent Drawing for faults location Dual Mode Wireless Upgrade, WiFi/USB dual channel OTA Support offline operation for series RFFE BUS data test Support i2C bus detection, baseband chip reading and writing 3.5inch large screen with 320 * 480 display resolution Low power consumption and 12 hours long-lasting endurance Add uart electrical level adjustment function, improve the compatibility Built in with buzzer, enables button feedback and short circuit alarm (The difference in wording does not affect the use) colour: Blue material: Plastic Package Contents: 1 * Tester Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
